Night Owl

0. What is a clicker?

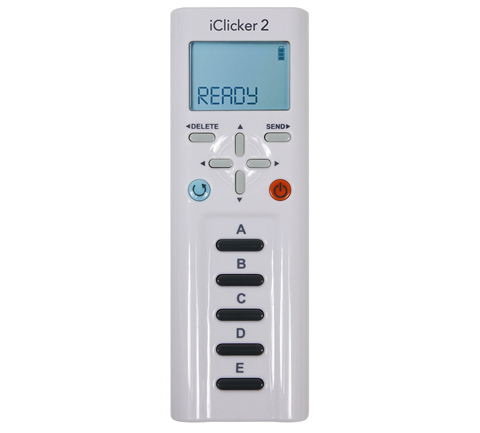

A clicker is a handheld remote with answer buttons A–E. In a lecture, students press an answer and each press transmits a short radio packet to a receiver, which tallies responses and logs attendance.

1. The challenge

Professor Falcon teaches CPSC401 (Wireless Security) at Benevolent Bureau of Birds University and uses clicker devices for attendance. Students transmit answers wirelessly at 917 MHz using frequency hopping spread spectrum (FHSS).

This semester the professor discovered two kinds of cheaters:

Speed Clickers — click instantly (< 2 s) without reading the question; they just mash random buttons for attendance credit.

Night Owls — pre‑record their clicker signals at home, then replay them late in class using a different device.

Legitimate students respond in 2–15 s (normal human reading/thinking time) and have hidden a message in their responses.

During yesterday’s lecture (2026‑03‑29, 2:30 PM) the base station captured 20 s of RF traffic. Your mission: separate cheaters from legitimate students. The recovered message is the flag body, wrapped as bbb{recovered_message}.

We are given a single file, lecture_capture.iq.

2. Parsing the capture

lecture_capture.iq

80,004,096 bytes
- 4,096 bytes ICLKR header + 80,000,000 bytes of IQ
- payload = 10,000,000 complex64 samples @ 500 kHz = 20 s of RF at 917 MHz

The header is a small custom struct beginning with the magic ICLKR. There is no spec so had to guess them (with help of an AI). The last column records how confident each one is and how it was established:

offset	field	value	how I knew
0x00	magic	`ICLKR`	✅ obvious
0x05–0x07	padding	(3 bytes)	⬜ likely alignment padding
0x08	version (u32)	`2`	❓
0x0C	sample_rate (u32)	`500000` (500 kHz)	🔎 checked — `500000` is read straight from here; it’s the only rate that makes the file’s size and 20 s length add up, and the data turns into clean tones when you use it (a wrong rate would just give noise)
0x10	center_freq (u32)	`917000000` (917 MHz)	✅ obvious
0x14	u32	`38000`	⬜ unknown — never resolved; doesn’t matter for the solve
0x18	u32	`0x00555555` (the classic `0x55…` preamble)	❓
0x1C	u32	`0x003b8016` (sync word)	❓
0x20	u32	`3500` (channel spacing / “baud”)	🔎 checked — guessed “baud”, then confirmed when the FHSS channels landed on exact multiples of 3500 Hz (§3)
0x24	f32	`1.25` (mod index)	❓
0x28	f32	`20.0` (duration, s)	✅ obvious
0x2C	string	`"2026-03-29 14:30"`	✅ obvious

3. Finding the bursts

Loaded into a waterfall/spectrogram viewer like Inspectrum, the structure is obvious by eye: discrete bursts scattered across the 20 s, each parked on a clean center tone (its channel). They stand out clearly — no denoising needed. Extracting their exact start/end times: 68 bursts.

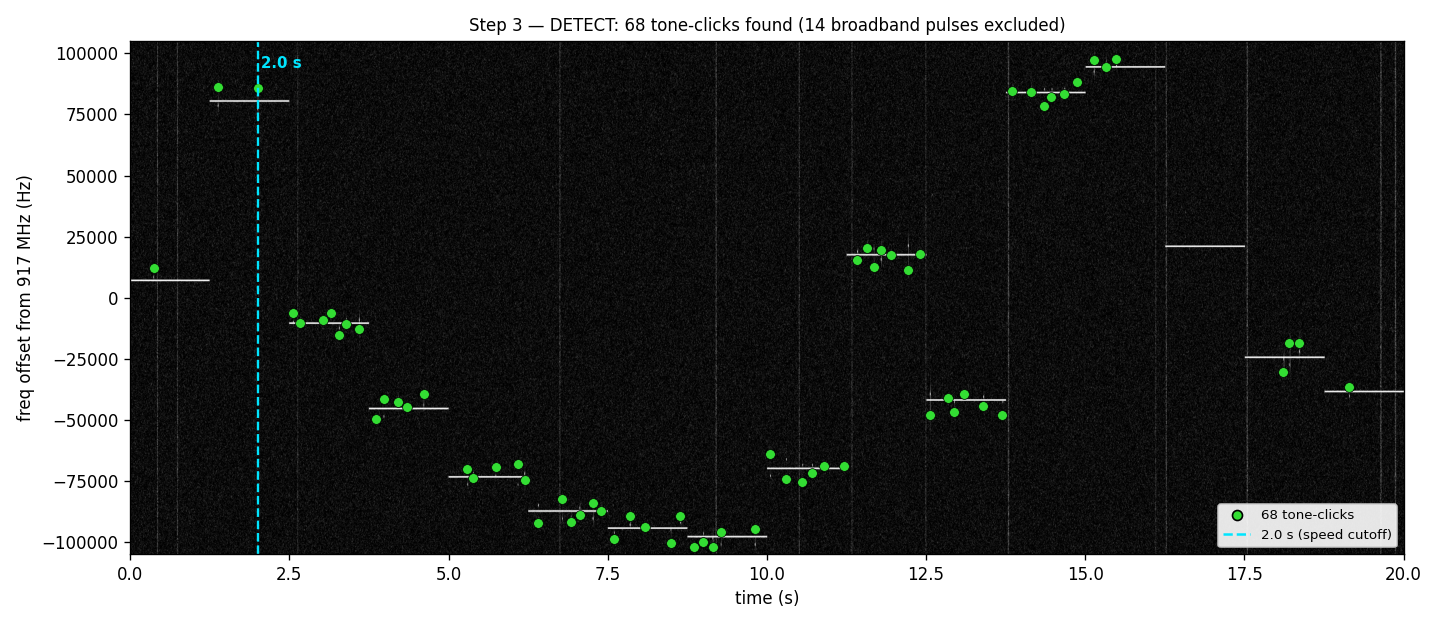

Step 3 — all 68 detected bursts across the 20 s capture — *The 68 tone-clicks (green) on the full waterfall — found, but not yet classified; the 14 faint broadband pulses are excluded.*

Per‑burst structure

For each burst I followed how its frequency changed over time (and double-checked with a spectrogram). Every full click has the same two‑tone shape:

One click in Inspectrum — short preamble tone + longer data tone — *One click in Inspectrum (time →, frequency ↕)*

A short preamble burst during the amplitude ramp‑up.
A longer data burst for the rest of the burst.
No hidden modulation inside. Just a burst.

Guesses

Measuring each tone’s frequency precisely (to within a few Hz), two tidy patterns fall out:

Each student sits on a channel — a frequency that’s an exact multiple of 3500 Hz (n·3500). That channel number n is effectively the student’s ID.
Each burst (a click) sits a small, neat distance off that channel — always a multiple of 150 Hz. That distance ÷ 150 is an integer code
- pre_code : Preamble burst code (pre_code = (preamble_burst_freq − n·3500) / 150)
- data_code : Data burst code (data_code = (data_burst_freq − n·3500) / 150)

This step took me a long time because I thought multiple frequency channels were used for each student (since the challenge said it used FHSS) and tried to find the pattern. But it didn’t work out and I did some research and found that the clickers might not use FHSS (https://mhe.my.site.com/iclicker/s/article/How-to-Set-a-Fixed-Frequency-for-an-iClicker-Base). So I tried the idea that each channel is for a single student.

4. Removing night owls and speed clickers

Plotting data‑tone frequency vs. time shows ~16 students, each parked on a constant channel and transmitting a short burst of clicks. It’s time to remove the Night Owls and Speed Clickers.

class	time	bursts	students	action
Speed clickers	< 2 s	3	~2	drop (random mashing)
Legitimate	2–15 s	61	11	keep — the message
Night owls	> 15 s	4	~3	drop (replays)

If the center tone started before 2 sec, I’ve sorted it as a Speed Clicker. If the center tone started between 2 and 15 sec, I’ve sorted it as the Legitimate.

That leaves 11 legitimate students, on channels n = -3, -13, -21, -25, -27, -28, -20, 5, -12, 24, 27, with 61 bursts between them.

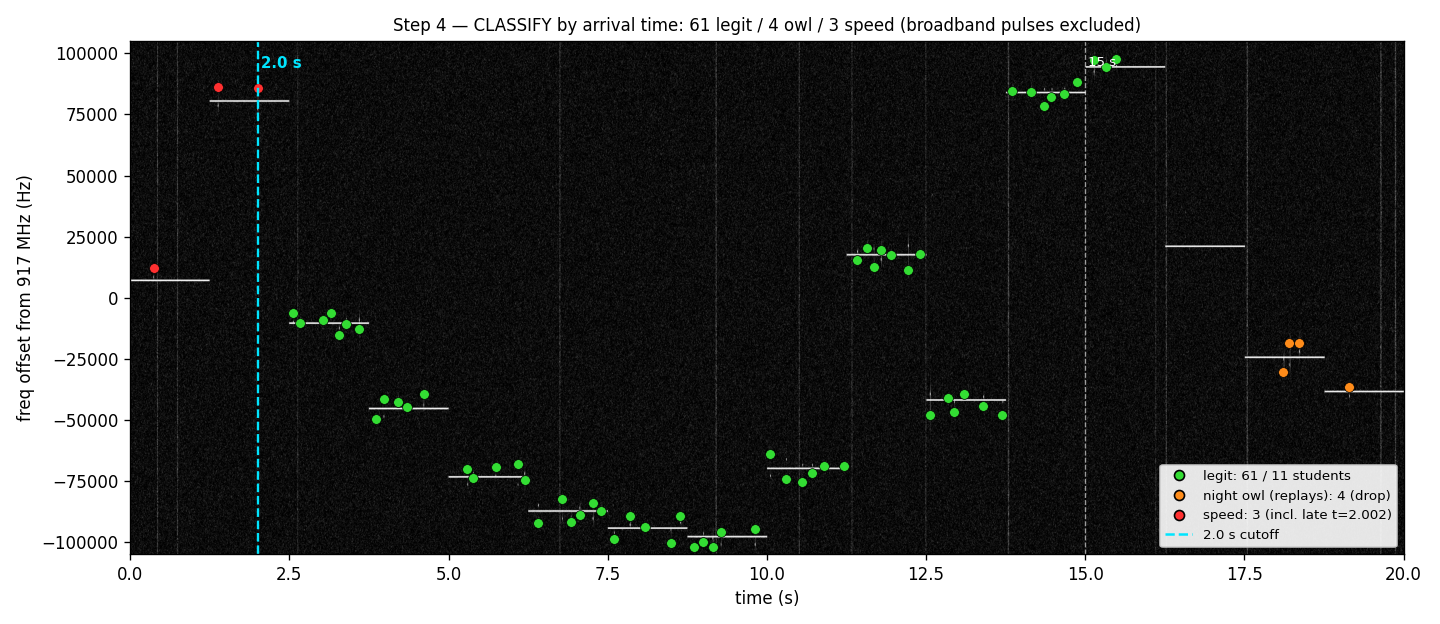

Step 4 — bursts colored by arrival-time class — *Bursts by class: **green** = the **11 legit students** (kept); **orange** = >15 s night-owl replays (drop); **red** = speed-clickers (drop).*

5. Narrowing the legit bursts to the answers

61 legit click candidates
- Keep 28 (pre_code == 9)
- drop 33 (pre_code ≠ 9)

The pre_code == 9 is from the pre_code = (preamble_burst_freq − n·3500) / 150 in section 3. There were other pre_code values (1, 2, 3, 10, 11, 16, 17, 18, 19) and the only thing that generated ‘words’ was ‘9’.

Step 5 — the 61 click candidates colored by pre_code — *The 61 click candidates = 28 green (pre_code = 9, real answers) + 33 gold (pre_code ≠ 9, decoys).*

6. The decode

The 28 pre_code == 9 answers’ data codes are a linear map onto ASCII:

codepoint = round( 95 + (data_code·150 + 2250) / 150.8 )

Code −15 → _ (space) && codes −13 … +12 → a … z.
Codes that land outside the printable a…z/_ band are not used.

⬇️Below is the “Out of range” clicks. (pre_code = 9, but out of range)

data_code	codepoint
`+39`	149	beyond printable ASCII (≥ 127)
`+35`	145	beyond printable ASCII (≥ 127)
`−36`	74	`J` — valid ASCII, but uppercase
`−37`	73	`I` — valid ASCII, but uppercase

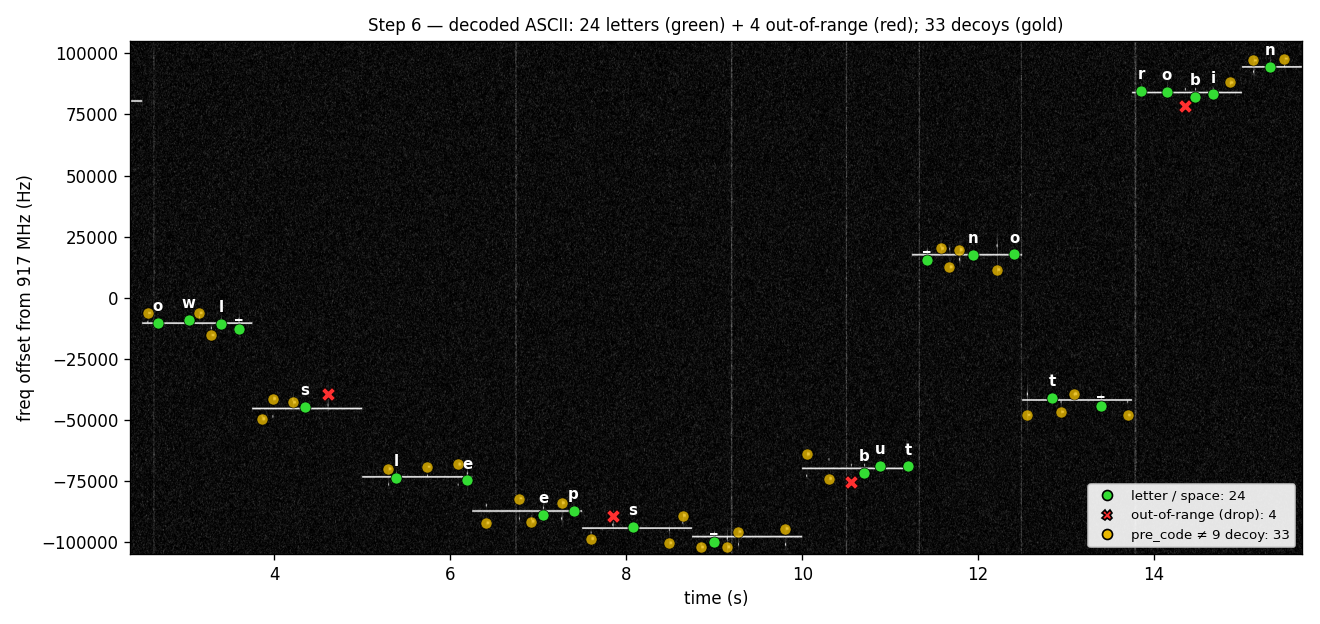

Step 6 — decoded ASCII at each answer click — Each `pre_code = 9` click rendered as its **decoded ASCII character** — the 24 green letters/spaces spell the message reading; **red ✕** = the 4 out-of-range; **gold** = the 33 `pre_code ≠ 9` decoys.

owl_sleeps_but_not_robin          ('_' = the space code, −15)

🚩 bbb{owl_sleeps_but_not_robin}

7. Review

I’m not sure whether the signal could be called FHSS. If my solution is correct, since students use their own frequency channels, I think it’s closer to FDMA (Frequency Division Multiple Access). I had to remove ‘J’ and ‘I’ just because they weren’t fitting so maybe there’s a better solution.
